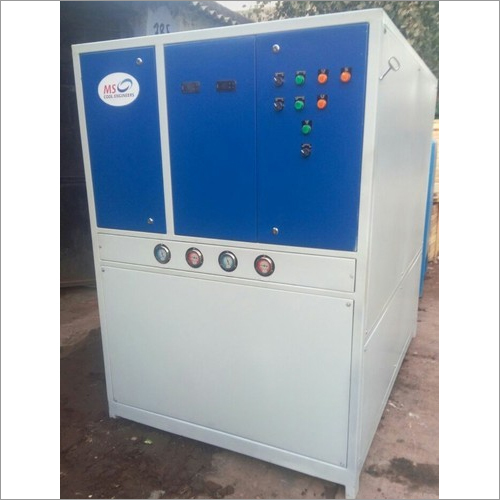

25 TR 440 Volt Water Cooled Scroll Chiller

25 TR 440 Volt Water Cooled Scroll Chiller Specification

Application
HVAC, Process Cooling, Industrial Applications

Motor
High Efficiency Induction Motor

Refrigerating Capacity
25 TR (Ton of Refrigeration)

Material
Other

Condition
New

Type
Water Cooled Scroll Chiller

Dimension (L*W*H)
1800 x 750 x 1350 mm Millimeter (mm)

Power Supply
Three Phase

Voltage
380-420 V Volt (v)

Cooling Type
Water Cooled

Nozzle Material
Stainless Steel

Cooling Coil Material
Copper

Water Flowing Rate
7.5 m/hr

Water Pump Motor
2.2 kW

Noise Control
Low Noise Operation db

Compressor
Scroll Type

Cooling Capacity (kW)
88 kW

Evaporator Type
Shell and Tube

Refrigerant Used
R410A / R407C (Environmentally Friendly)

Inlet/Outlet Pipe Size
2 Inch

Water Tank Capacity
Optional

Installation
Floor Mounted

Frequency
50 Hz

Display
LCD Touchscreen

Condenser Type
Shell and Tube

Safety Features
Overload Protection, Phase Failure, High/Low Pressure Switch

Operating Temperature Range
5C to 25C

Circuit Design
Multiple Scroll Compressors - Tandem

Control Panel
Microprocessor Based Digital Controller

Expansion Device
Thermostatic Expansion Valve

25 TR 440 Volt Water Cooled Scroll Chiller Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
1 , , Unit Per Week

Delivery Time
1 Week

About 25 TR 440 Volt Water Cooled Scroll Chiller

Specification

Tonnage	25 TR
Brand	MS Cool Engineers
Compressor Type	Scroll
Cooling Capacity	800 Litre/Hour
Phase	Three
Automation Grade	Automatic
Voltage	440 V
Usage/Application	Industrial
Country of Origin	Made in India
Body Material	Mild Steel
Frequency	50/60 Hz
Chiller Type	Water Cooled
Surface Finish	Color Coated

Advanced Scroll Compressor Design

Utilizing a tandem circuit of multiple scroll compressors, this chiller offers high efficiency and stable cooling output. The scroll type compressor paired with a high-efficiency induction motor ensures optimal performance with low noise and minimal vibration, making it suitable for environments sensitive to sound.

Precision Control & Safety

The system is managed by a microprocessor-based digital controller with an intuitive LCD touchscreen display, allowing precise temperature settings and system monitoring. Built-in safety mechanisms such as overload protection, phase failure detection, and high/low pressure switches protect both the machine and your operations.

Robust Construction & Flexible Application

Constructed with a powder-coated steel cabinet and stainless steel nozzles, the chiller is built to last and resist corrosion. Its flexibility makes it suitable for installation in industrial plants, commercial buildings, and specialized process cooling facilities across India due to its sturdy floor-mounted installation and wide ambient temperature tolerance.

FAQ's of 25 TR Water Cooled Scroll Chiller:

Q: How does the shell and tube design benefit the performance of this water cooled chiller?

A: The shell and tube configuration for both evaporator and condenser enhances heat transfer efficiency, resulting in better overall cooling performance, higher reliability, and easier maintenance when compared to other designs.

Q: What are the main advantages of using R410A or R407C refrigerants in this chiller?

A: R410A and R407C are environmentally friendly refrigerants with low ozone depletion potential. They ensure efficient cooling performance while complying with regulations for eco-conscious industrial and HVAC applications.

Q: When should the optional water tank be considered for installation?

A: The optional water tank should be installed when your cooling application requires greater water storage to accommodate load fluctuations or to provide buffer for consistent operation during peak demand periods.

Q: Where is this chiller most effectively used?

A: This chiller is well-suited for HVAC systems in commercial complexes, process cooling in manufacturing facilities, and a range of industrial applications requiring stable and reliable chilled water circulation.

Q: What safety features are integrated into the chiller's control system?

A: The chiller is equipped with overload protection, phase failure detection, and high/low pressure switches that actively safeguard the unit against operational anomalies and electrical issues.

Q: How does the microprocessor-based digital controller improve user experience?

A: The digital controller with LCD touchscreen provides intuitive and precise adjustments, real-time monitoring, easy troubleshooting, and simplifies overall system management for operators.

Q: What are the benefits of the floor-mounted installation design for this chiller?

A: Floor-mounted design ensures stability, simplifies access for routine service, and is ideal for industrial and commercial settings where durability and secure positioning are essential.
