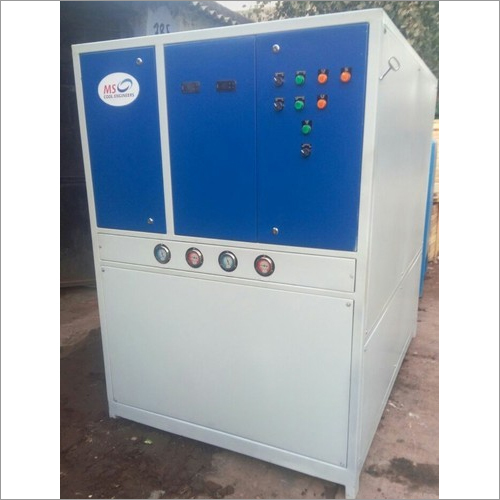

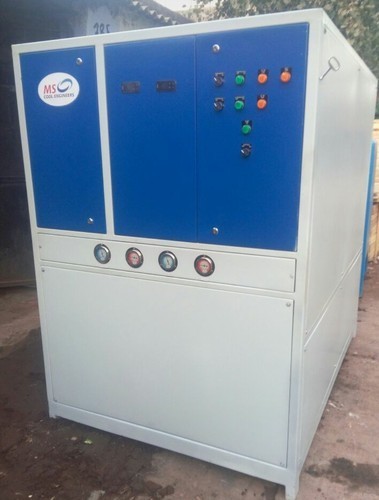

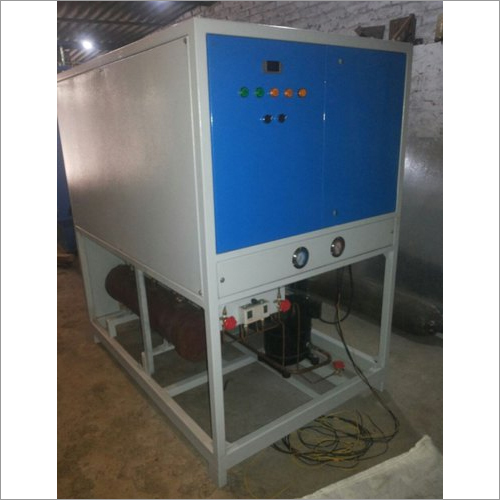

30 TR Water Cooled Scroll Chiller

30 TR Water Cooled Scroll Chiller Specification

Material
Robust powder-coated steel, corrosion-resistant

Motor
Premium grade, 3 phase

Air Flow
Not applicable (water cooled)

Application
Industrial process cooling, central air-conditioning

Refrigerating Capacity
30 TR (105 kW)

Condition
Brand new

Type
Water Cooled Scroll Chiller

Dimension (L*W*H)
1850 mm x 820 mm x 1400 mm

Power Supply
415V, 3 Phase, 50Hz

Voltage
415V

Cooling Type
Water cooled

Nozzle Material
Brass

Cooling Coil Material
Copper (Inner Grooved)

Water Flowing Rate
8.5 m/hr

Water Pump Motor
1.5 HP

Noise Control
Low noise design ( 65 dB)

Compressor
High-efficiency hermetic scroll type

Display
LCD digital display

Evaporator Type
Shell & Tube

Protection Features
Compressor overload, phase protection, high/low pressure protection

Water Tank Capacity
100 Litres

Refrigerant
R-410A (Environmentally friendly)

Installation Type
Floor mounted

Controller
Microprocessor-based digital controller

Condenser Type
Shell & Tube

Temperature Range
5°C to 20°C

Piping Material
GI/SS as per requirement

Ambient Temperature Suitability
Up to 50°C

Expansion Device
Thermostatic expansion valve

Inlet/Outlet Connection
2.5 inch BSP

30 TR Water Cooled Scroll Chiller Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1 Week

About 30 TR Water Cooled Scroll Chiller

Specification

Tonnage	30 TR
Brand	MS Cool Engineers
Compressor Type	Scroll
Cooling Capacity	850 Litre/Hour
Phase	Three
Automation Grade	Automatic
Voltage	440 V
Usage/Application	Industrial
Country of Origin	Made in India
Body Material	Mild Steel
Frequency	50/60 Hz
Chiller Type	Water Cooled
Surface Finish	Color Coated

High-Efficiency Design for Demanding Applications

Built around a high-efficiency hermetic scroll compressor, this chiller delivers 30 TR (105 kW) of cooling capacity. Its dual shell & tube heat exchangers provide optimal performance for a range of process and air-conditioning needs, ensuring reliability and ease of maintenance in continuous operations.

Smart Control and Comprehensive Protection

A microprocessor-based digital controller continuously monitors and regulates chiller operations, displaying critical information on an intuitive LCD screen. Enhanced safety is provided through overload, phase, and pressure protection, making daily use safer and extending chiller lifespan.

Robust Construction and Low Maintenance

The chiller's frame, made from robust powder-coated steel, is corrosion-resistant to withstand demanding environments. Copper inner grooved coils and brass nozzles enhance thermal efficiency while requiring minimal upkeep, ensuring long-term dependability and reduced operational costs.

FAQ's of 30 TR Water Cooled Scroll Chiller:

Q: How does the 30 TR Water Cooled Scroll Chiller achieve efficient cooling?

A: This chiller uses a high-efficiency hermetic scroll compressor paired with shell & tube evaporator and condenser for optimal heat transfer. The system also benefits from an advanced thermostatic expansion valve to control refrigerant flow, maximizing efficiency within a 5C to 20C temperature range.

Q: What distinguishes R-410A refrigerant in this chiller?

A: R-410A is a non-ozone depleting, environmentally friendly refrigerant with superior heat transfer properties. Its use in the chiller ensures high energy efficiency and compliance with eco-friendly standards for industrial and commercial applications.

Q: When should this chiller be used for industrial applications?

A: This water cooled scroll chiller is ideal whenever precise temperature control and reliable, large-scale cooling are required. Its robust design, large tank capacity, and reliable performance make it well-suited for process cooling and central air-conditioning in factories, data centers, and large facilities.

Q: Where can the chiller be installed within an industrial setting?

A: The unit is floor-mounted and designed for indoor installation, often positioned in plant rooms or dedicated cooling equipment spaces. Its compact dimensions and corrosion-resistant construction allow placement in varied industrial environments across India.

Q: What is the installation process for this chiller?

A: Installation involves placing the chiller on a level floor, connecting inlet and outlet piping (2.5 inch BSP, GI/SS), electrical hook-up to a 415V, 3-phase, 50Hz supply, and integrating it with your facility's process flow. Professional installation by an authorized dealer or supplier is recommended.

Q: How is the chiller operated and monitored?

A: Operators interact with the unit via an LCD digital display controlled by a microprocessor-based controller. This interface allows easy monitoring of temperature, pressure, water flow, and system alarms, while built-in protections automatically manage overload, phase, and pressure events.

Q: What are the benefits of choosing this chiller for industrial cooling?

A: Key advantages include high energy efficiency, low noise (<65 dB), robust and corrosion-resistant build, smart digital controls, and broad ambient temperature suitability (up to 50C). These features ensure dependable, cost-effective cooling for diverse industrial and commercial uses.
