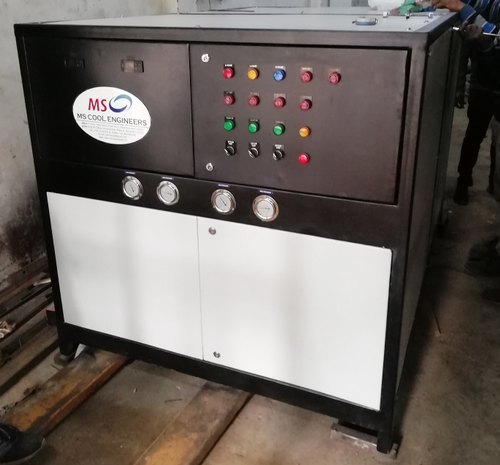

Industrial Water Cooled Chiller

Industrial Water Cooled Chiller Specification

Motor
High-Efficiency TEFC Motor

Air Flow
N/A (Water Cooled System)

Refrigerating Capacity
10 TR to 100 TR

Application
Industrial Processes, Cooling Machines, HVAC, Laboratories

Material
Mild Steel Body, Powder Coated Finish

Condition
New

Type
Water Cooled Industrial Chiller

Dimension (L*W*H)
Customizable, based on capacity (Standard: 2000 x 800 x 1600 mm)

Power Supply
3 Phase, 50 Hz

Voltage
380-440 V

Cooling Type
Water Cooled

Nozzle Material
Stainless Steel

Cooling Coil Material
Copper with Aluminium Fins

Water Flowing Rate
8 - 100 m/hr (Depending on Model)

Water Pump Motor
High Pressure Centrifugal Pump, 2.2 kW to 7.5 kW

Noise Control
Low Noise Operation, below 75 dB

Compressor
Hermetically Sealed Scroll / Semi-Hermetic Screw Type

Refrigerant
R407c / R410a Eco-Friendly

Temperature Range
+7°C to +25°C Adjustable

Insulation
PUF Insulated Water Tank

Expansion Device
Thermostatic Expansion Valve

Protection Features
Overload, Phase Failure, Low/High Pressure

Finish
Powder Coated

Evaporator
Direct Expansion Type

Pipe Connection
Inlet/Outlet 1.5 Inch

Weight
Approx. 250 Kg

Control Panel
Microprocessor Based Controller

Condenser
Water Cooled, Multi Pass Shell and Tube

Mounting Type
Floor Mounted

Water Tank Capacity
30 Liters (Integral SS304)

Ambient Operating Temperature
Up to 45°C

Heat Exchanger
Tube-in-Tube / Shell & Tube Type

Industrial Water Cooled Chiller Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
1 , , Unit Per Week

Delivery Time
1 Week

About Industrial Water Cooled Chiller

Owing to the rich expertise, we are supplying commendable selection of Industrial Water Cooled Chiller in a bulk quantity at low budget prices. Industrial Water Cooled Chiller can be obtained in variegated refrigeration storage capacity and specifications to cater the best needs and requirements of our valuable consumers. This chiller is used for handling heavy duty loading applications in different industries like food unit, colleges, hospitals, offices and so on. Although, it is fabricated with the multi compressor instrument which gives longer durability and instant results of it.

Advanced Energy-Efficient Cooling

The water-cooled chiller employs a hermetically sealed scroll or semi-hermetic screw compressor, paired with a high-efficiency TEFC motor to ensure optimal performance and low energy consumption. Its advanced thermostatic expansion valve allows precise control of refrigerant flow, adapting seamlessly to changing process requirements while maintaining stable temperatures and efficient operation.

Robust Safety and Protection Mechanisms

Engineered for reliable operation, this chiller incorporates multiple protection features, including overload, phase failure, and low/high pressure safeguards. These mechanisms shield the system from electrical and mechanical faults, ensuring longevity and safe performance in demanding environments. The powder-coated mild steel body provides further durability against corrosion and harsh conditions.

Versatile Applications and Customization

Suitable for industrial processes, cooling machinery, HVAC systems, and laboratory use, this chiller adapts to a broad range of requirements. Users can select from different heat exchanger types, cooling capacities, and dimensions to match specific installation needs. The water tanks integral SS304 construction with PUF insulation maintains thermal efficiency, while noise levels remain below 75 dB for a quieter work environment.

FAQs of Industrial Water Cooled Chiller:

Q: How does the microprocessor-based controller improve chiller operation?

A: The microprocessor-based controller monitors and manages all critical parameters, ensuring precise temperature control, optimized energy use, and quick response to changes in cooling demand, which leads to efficient and consistent chiller performance.

Q: What applications are ideal for this water-cooled chiller?

A: This chiller is designed for industrial processes, laboratory cooling, machinery, and HVAC systems. Its flexible temperature range and robust design make it suitable for diverse industrial and commercial environments across India.

Q: When should I schedule maintenance for the water-cooled chiller?

A: Routine preventive maintenance, including checking water flow, cleaning the heat exchanger, and inspecting electrical connections, should be carried out every 3-6 months, or as recommended based on usage and environmental conditions.

Q: Where can the chiller be installed in an industrial setting?

A: The unit is floor mounted and best installed in a well-ventilated mechanical or utility area with reliable power and water connections. Its powder-coated, robust construction allows for flexible placement within factories, labs, or industrial plants.

Q: What is the process for adjusting the temperature settings?

A: Temperature settings can be easily adjusted within the +7C to +25C range via the microprocessor-based control panel, allowing operators to match cooling output precisely to process requirements with minimal effort.

Q: How does the integrated protection system benefit long-term usage?

A: The integrated overload, phase failure, and high/low pressure protections safeguard the system from operational faults, minimizing downtime, extending equipment lifespan, and enhancing overall safety for operators.
